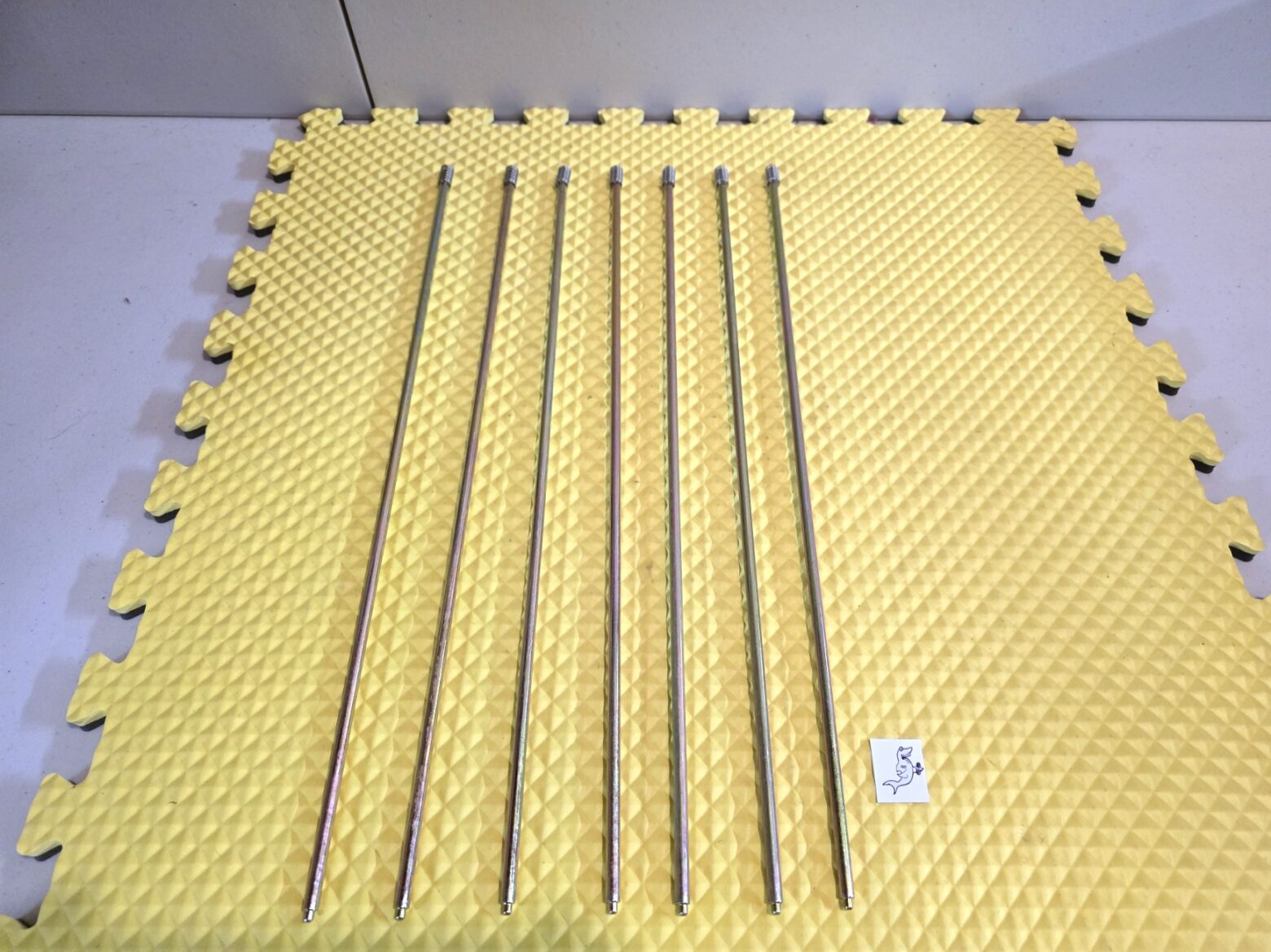

Dixie Narco 276E & 276E HVV Single Column 16.9oz Bottle conversion kit. This is for the Dixie Narco drink vending machine model 276E & 276E HVV. This kit is used to convert from 20oz bottles to 16.9oz. The set consists of (7) single column rods. This conversion kit is brand new from factory.

Single Column Setup Instructions:

Power down machine before installing shims. If not already, start by adjusting the single brown vend motor cam discs. Lightly pull disc tab towards you and turn disc clockwise to #5 hole snaps in. You should have 2 notches on disc for 2 deep bottles.

Take springs off "sold out" flappers above vend motor. Power machine up and pull out white door button located between coin mech & bill validator. This will reset vend motor cams. Now vend each single column brown vend motor so that the rotor cup is in the right, 5:00 o'clock position. This will allow you to insert rod in rotor cup holes from above can ramp. Insert the rod first hole towards you. Then take your 16.9oz bottle and slide in between rotor rod and metal shim to make sure that bottle will sit in there without dropping down.

If 2 bottles vend then adjust brown disc came to #2 or #3.

Attach "sold out" springs and load machine to test vend & prime down bottles till they vend out.
